LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling

  • LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling
Lugar de origem Anhui, China
Marca LYNCCN
Certificação ISO9001
Quantidade de ordem mínima 3 peças
Preço Negociável
Detalhes da embalagem Caixa de madeira
Tempo de entrega 30 dias
Termos de pagamento T/T
Habilidade da fonte 500 peças/peças por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do produto LYNCCN WAY100.80 V70 Hidráulico Personalizado Único V Die Press Brake Tooling Marca Lynccn
Categoria de produto Pressione o dado do freio V abertura 70mm
Dureza HRC48-52 Largura 85 mm
Altura 120mm Material 42crmo
Ângulo 80 ° Embalagem Caixa de madeira
Destacar

V70 Press Brake Tooling

,

Custom Hydraulic Press Brake Tooling

,

LYNCCN Press Brake Tooling
Deixe um recado
Descrição de produto

A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.


This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

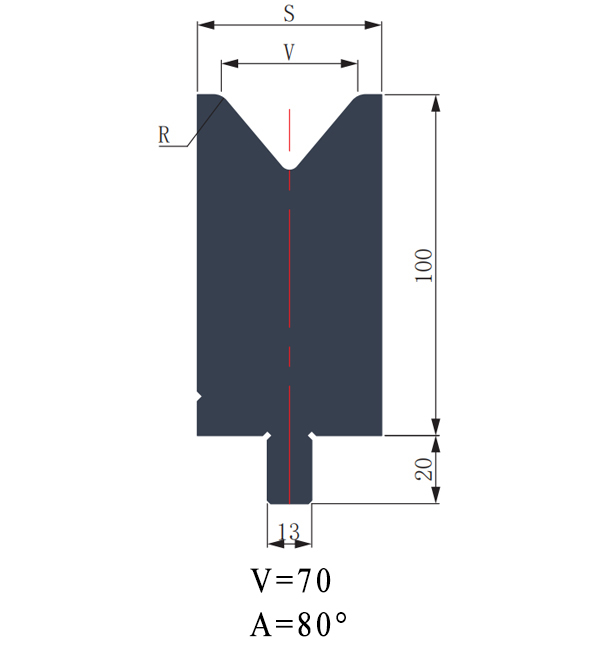

Technical Parameters:


Product Type Press Brake Die
Length 550mm/500mm
Brand LYNCCN
Width 85mm
Height 120mm
Angle 80°
V Opening 70mm
Hardness HRC50±2
Heat Treatment Induction Hardening
Material 42CrMo
Max. Load 100T/M
Packing Wooden Box
Delivery Time 30 days



Standard Segmentation:



500mmLYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 0

515mm

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 1

550mm Segmentation

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 2



Applications:


Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.


LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 3

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 4

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 5

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 6

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 7

LYNCCN WAY100.80 V70 Custom Hydraulic Single V Die Press Brake Tooling 8
