LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling

  • LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling
Lugar de origem Anhui, China
Marca LYNCCN
Certificação ISO9001
Quantidade de ordem mínima 3 peças
Preço Negociável
Detalhes da embalagem Caixa de madeira
Tempo de entrega 30 dias
Termos de pagamento T/T
Habilidade da fonte 500 peças/peças por mês

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do produto LYNCCN WAY100.30 V24 V24 Hidráulico Personalizado Único V Die Press Brake Tooling Marca Lynccn
V abertura 24 mm Categoria de produto Pressione o dado do freio
Dureza HRC48-52 Altura 120mm
Material 42crmo Largura 40mm
Ângulo 30 ° Embalagem Caixa de madeira
Destacar

LYNCCN WAY100.30 V24 Die

,

Press Brake Custom Hydraulic V Die

,

V24 Custom Hydraulic Single V Die
Deixe um recado
Descrição de produto

A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.


This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

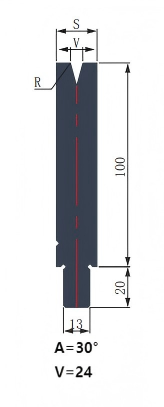

Technical Parameters:


Product Type Press Brake Die
Length 550mm/500mm
Brand LYNCCN
Width 40mm
Height 120mm
Angle 30°
V Opening 24mm
Hardness HRC50±2°
Heat Treatment Induction Hardening
Material 42CrMo
Max. Load 40T/M
Packing Wooden Box
Delivery Time 30 days



Standard Segmentation:



500mmLYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 0

515mm

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 1

550mm Segmentation

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 2



Applications:


Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.


LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 3

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 4

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 5

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 6

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 7

LYNCCN WAY100.30 V24 Custom Hydraulic Single V Die Press Brake Tooling 8
